Embedding the Printess Editor (iframe-UI)

The Printess editor can be easily embedded as an iframe to your shop or web-site:

<iframe  id="printess" allow="clipboard-read; clipboard-write" src="https://editor.printess.com/printess-editor/embed.html"></iframe>

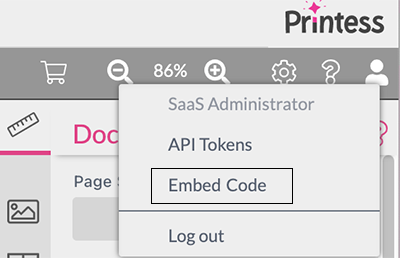

Tip: In the User menu (top right corner) you’ll find the option Embed Code. Just click on it and you’ll get a ready-made piece of HTML code for pasting the current Template onto any HTML page.

In the Printess Github Repo you can find a simple example of how to integrate the Printess Editor. It also contains the proper styling for the iframe-UI.

It’s highly recommended to display the Printess editor iframe in full-screen. Especially on mobile devices, the user experience can get a bit quirky if other elements are shown above or below the Editor. Space is extremely limited and to achieve the app-feeling scrolling of the website should not happen. When iOS expands its giant on-screen keyboard, Printess counteracts this distortion by simultaneously hiding all toolbars and page navigation buttons. When the keyboard collapses, the Printess UI will switch back to normal. This will only work if your page does not exceed the area of the iframe-UI.

If you’d like to learn how to handle this behavior on your own or want to tweak the existing code, take a look at the custom integration section below.

Attaching the Editor

Once the DOM is loaded you need to pass some essential parameters like your shop token, Template name, and your session/basket ID.

iframe.contentWindow.postMessage({
    cmd: "attach", properties: {

      /* Paste your Printess shop-token here */
      token: "",

      /* Name of the template to load. You can also pass a save-token from "basket" or "back" callback here to load previously saved work. */
      templateName: "Greeting Card",

      /* Version of the template. Can be draft or published (default) depending on which version of the document should get used */
      templateVersion: "published"

      /* A unique ID to identify this session, can later be used to connect to a UserID once the user has logged in or created an account */
      basketId: "Some-Unique-Basket-Or-Session-Id",

      /* Optional if available: the ID of the current shop-user to keep all uploaded resources together and display for reccuring users */
      shopUserId: properties.shopUserId,


      /* Optional: A list of templates to merge on load */
      mergeTemplates: [
        {
          "templateName": "Card-Title-2",
          "documentName": "Document", // optional, if not supplied Primary or first Document is used
          "spreadIndex": 0  // Example to merge a card title to the first spread on load
          "templateVersion": "published" // Can be draft or published (default) depending on which version of the document should get used
        },
        {
          "templateName": "Card-Back-2",
          "documentName": "Document", // optional, if not supplied Primary or first Document is used
          "spreadIndex": 2  // Example to merge a card back to the third spread on load
          "templateVersion": "published" // Can be draft or published (default) depending on which version of the document should get used
        }
      ],

      /* Optional: Add your own translation-table. */
      translations: {
        "custom": {
          "name": "Your Name" // you can access this translation with ${gl("custom.name")}
        },
        "ui": {
          "okButton": "Perfect!"
        }
      },

      /* Optional: A list of Form Fields which will be pre-filled on load */
      formFields: [
        {
          name: "Name",
          value: "Peter Meyer"
        },
        {
          name: "Email",
          value: "peter.meyer@printess.com"
        }
      ]
    }
  }, "*");
}

token

 token: 'YOUR TOKEN'

token should be set to a Shop-Token which points to your Printess account. You can retrieve this token once you are logged in (Printess Editor -> Account Menu -> API-Token). You’ll see 2 different tokens in the dialog. Always use the Shop-Token.

templateName

templateName: 'Sign'

templateName is required and specifies the name of the Template to load.
templateName can also take the save-token you received from the back or basket callback and load it directly.

basketId and shopUserId

To allow your customer to upload images and save/load their work - you need to set the basketId.

Alternatively you can set a shopUserId to make Printess store the context of the current customer (user) so when the customer uploads an image it will be stored under the shopUserId. Thus, when the customer returns later they will see all of their previously uploaded images.

CSS

Printess is highly customizable via CSS. You can either select from ready-made bootstrap(ish) themes or provide your custom CSS for the Buyer Side.

Customization must be done within the Printess Account Portal in the Themes and Logo menu entries. Here you can also change the startup logo and animation, as well as copy an embed code.

mergeTemplates

templateName: "card",
mergeTemplates: [{
  "templateName": "motive1",
  "documentName": "Document", // optional, if not supplied Primary or first Document is used
  "templateVersion": "published" // Can be draft or published (default) depending on which version of the document should get used
  // spreadIndex: 0; // optional
  // mergeMode: "merge" // other options: "layout-snippet-no-repeat" | "layout-snippet-repeat-all" | "layout-snippet-repeat-inside"
}];

A commonly used approach is to have a Master Template with the final dimensions, general Buyer Side settings, and all available colors and fonts. And then having multiple Artwork Templates which the customer can select directly from the shop catalog.

Example: Let’s say the Master Template is named “Card” and the selected motive is named “Motive1”. When you show the Printess Editor you can now load “Card” via the templateName property and merge in the document Document from the “Motive1” Artwork Template via the mergeTemplates property.
With spreadIndex you can define the spread number (zero-based) that the merged Template is placed on.

mergeMode By default merge mode for mergeTemplates is set to “merge” what simply merges the content of the merged doc(s) into the Master template. If set to one of the layout snippet modes the content merge will happen as if the pages of the doc had been used as Layout Snippets. This allows for merges which later on will disappear when the buyer selects a different layout.

Merging can also merge multiple documents from one template. Please note that this requires to enable the Is Merge Target property for additional documents and to not! set documentName while merging. (Read more)

Additional Note: Keep in mind that on a facing-page document each pair of pages counts only as a single spread.

Custom Translations

Printess will automatically show the Buyer Side UI in the current user’s browser language. Translations are managed/modified in the account portal. Read more about translations and Buyer Side language here.

If a specific language is desired (e.g. if a buyer should be able to set his preferred language, (regardless of local browser language) one can use the translationKey with a language key (window.navigator.language). Specific language keys like en-US will fall back to en in case no specific language is defined in the account portal. The default value is auto which lets the browser language determine the Editor language.

For debugging or if you’d like to change a certain value across all languages, you can provide a custom translation table to the attachPrintess call. Available keys can be found in the translation.json on the Printess Github Repo.

You can modify the values to the given keys to your needs by adding them to your translation table. If no custom translation for a specific key is found, Printess will fall back to the default translation.

translations: {
  "custom": {
    "name": "Your Name" // you can also access this translation in documents with ${gl("custom.name")}
  }
}

Forwarding the Visual Viewport

Unfortunately, iOS does not let an iFrame receive visual viewport events or values so we need to forward it.

The visual viewport is needed to identify if the software keyboard is visible on iOS and to move the selected frame to the center of the screen. So if you observe any behavior where text scrolls off-screen while you edit it, it’s probably because the “viewportScroll” event has not been forwarded.

    if (window.visualViewport) {
      window.visualViewport.addEventListener("scroll", () => {
        iframe.contentWindow.postMessage({ cmd: "viewportScroll", height: window.visualViewport.height, offsetTop: window.visualViewport.offsetTop }, "*")
      })
    }

Listening to Callbacks

To facilitate the shopping journey, Printess gives you two essential callbacks:

back: When a user presses the back button.

basket: When a user decides to purchase the configured product.

Both callbacks give you a save-token which can be stored in your database. This token can then be used to either print the saved configuration or load the saved work back to the Printess Editor.

Beside that, Printess also fires a callback when loaded and if the value of a price relevant form-field has changed.

window.addEventListener("message", () => {
  switch (event.data.cmd) {

    case "back":
      alert("Back to catalog. save-token:" + event.data.token);
      break;

    case "basket":
      alert("Proceed to checkout. save-token:" + event.data.token + " thumbnailUrl:" +event.data.thumbnailUrl);
      break;

    case "save":
      prompt("Save button pressed.\n\nsave-token:\n", + event.data.token);
      break;

    case "formFieldChanged":
      alert("Price Relevant Form Field: [" + event.data.name + "] changed to '" + event.data.value + "'");

    case "loaded":
      alert("Printess has finished loading the editor and the template.");

  }
  }
});

Back-Callback

This callback is fired when the user clicks on the Back button. It carries a save-token in case you want to allow your user to continue their work later. To enable this, just pass the save-token instead of the Template name.

Basket-Callback

This is fired when the user selects the Add to Basket button. It carries a save-token which you can pass to the backend API for production or pass to templateName for making changes on the saved work. The basket callback also carries a thumbnail URL for showing off the configured product in your shopping cart.

Save-Callback

This is fired when the user clicks the Save button. It carries a save-token which you can pass to the backend API for storing. Later you can pass it as templateName for contiue working on or ordering. The Save Button is only visible if you activate it under Buyer View Appearance -> Other Settings -> Show Save Button

Form Fields

Printess utilizes Form Fields which are created by the designer and can be changed by the buyer.

Passing Form Field Values

Let’s say you want to pre-populate form fields with customer data when showing off the Printess Editor? You can easily do this by just passing an array of objects when loading the Printess editor:

formFields: [
  {
    name: "Name",
    value: "Peter Meyer"
  },
  {
    name: "Email",
    value: "peter.meyer@printess.com"
  }
]

Each object needs to address a form field by its name and set its value as a string. Even if the form field type is a number or object, you still need to pass the value as a string. The above example could be used to pre-populate a business card template.

Receiving Form Field Updates

A third callback is formFieldChanged which is helpful when a user changes a certain configuration that has been marked as price relevant. Depending on the resulting value, you can adjust the price of the product accordingly.

These form fields can contain price relevant information such as material or color. The Retro Sign example Template demonstrates a couple of these form fields. Material, Size (and if a solid material is selected - Drill Holes and Varnish). All 4 form fields are possibly price relevant, so the eCommerce app must know if any of these values are changed.

Calling other API-Methods

The IFrame integration still gives you access to API methods. You can call any method of our API by its name. You’ll find a complete reference here: JS-API Reference

And this is how a sample call to change a form-field value would look like:

iframe.contentWindow.postMessage({
    cmd: "setFormFieldValue",
    parameters: ["name","Peter"]
}, "*");

If you expect a result from a method-call you can listen for a message with the method-name. For example hasSelection will return a boolean.

iframe.contentWindow.postMessage({
    cmd: "hasSelection"
}, "*");

window.addEventListener("message", () => {
  switch (event.data.cmd) {
    case "hasSelection":
      if (event.data.result === true) {
        alert("Printess has a current selection!" );
      }
  }
});

Congratulations!

You now know everything you need to get started with the Printess Editor. Have fun and please let us know what you like or where we can improve!
